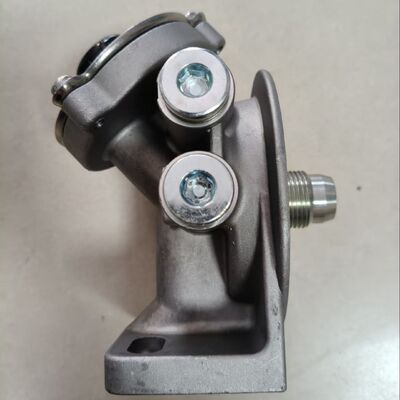

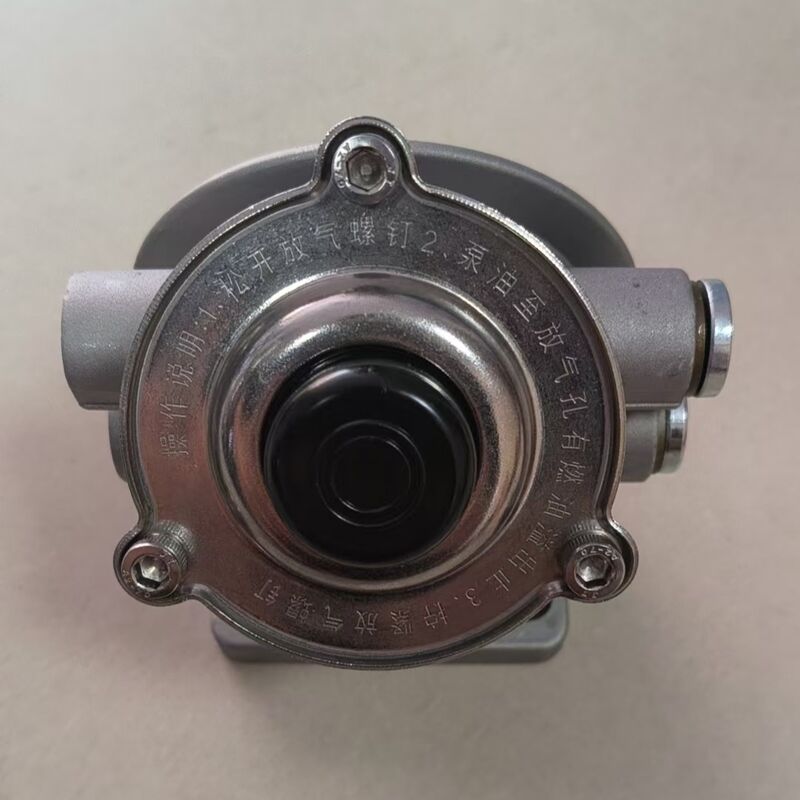

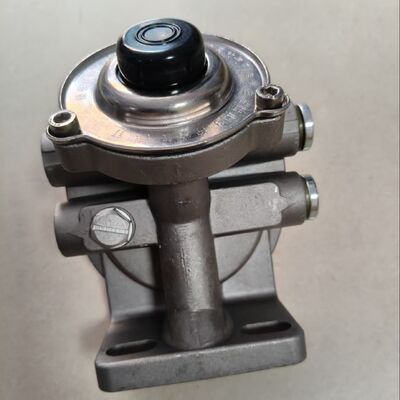

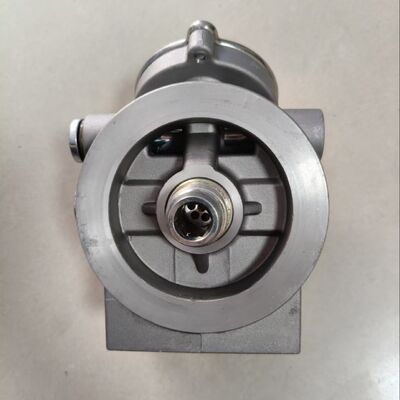

Excavator Fuel Water Separator, Diesel Coarse Filter, Sedimenter, Suitable for Large, Medium and Small Excavators YM129907-55701
Product Details:
| Place of Origin: | China |
| Model Number: | R90P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | $12.00 - $20.00/pieces |
| Packaging Details: | BOX |
| Delivery Time: | 5-8DAY |
| Supply Ability: | 10000 Piece/Pieces per |
|
Detail Information |
|||
| Model: | R90P | Function: | Separates Oil From Water |
|---|---|---|---|
| Maintenancerequirement: | Low Maintenance | Application: | Industrial Wastewater Treatment |
| Productname: | Oil-water Separator | Appliion: | Excavator |
Product Description
Product Functions (5 Major Features)
- Securely install the diesel fuel filter and provide fuel inlet and outlet passages
- Works together with the filter element to remove impurities, moisture, and particles from the fuel.
- O-ring seal to prevent leakage
- Made of aluminum alloy to assist in heat dissipation and temperature reduction
- Stabilize the fuel system pressure
Compatible with models from six major brands
- Komatsu: Full series from PC60 to PC400
- Carter: E320~E345 Full Series
- Hitachi: Full Series from ZX60 to ZX360
- Kobelco: Full Series SK60~SK460
- Doosan Daewoo: Full DH/DX Series
- EC: Full series from EC55 to EC460
Highlights of Material and Craftsmanship
- High-quality ADC12 die-cast aluminum alloy, integrally formed without porosity
- Anodized surface treatment, corrosion-resistant and wear-resistant
- High dimensional accuracy, perfectly compatible with original filter elements
Key Specifications
- Interface thread: M16/M18/M20×1.5
- Mounting hole spacing: 65/72/80mm, common specifications
- Operating temperature: -30℃~+120℃, pressure resistance ≤1.0MPa
- Replacement cycle: Inspection and replacement are recommended after 2000-3000 hours of operation
| Item | Description |
|---|---|
| Product Name | Excavator Diesel Filter Base / Diesel Filter Aluminum Base |
| Function | 1. Fix and install the diesel filter to form a complete fuel passage
|
| Usage | 1. Install between the fuel tank and the engine fuel injection pump
|
| Common Models | Suitable for matching filters: 600‑311‑3870, 600‑319‑3870, 11E1‑70010, R60P, FF5052, FF5133, FF5160, etc. |
| Compatible Models | Komatsu, Hitachi, CAT, Kobelco, Doosan, Hyundai, EC, Sany, XCMG, LiuGong and other excavators |
| Material | High‑strength die‑cast aluminum alloy |
| Features | Good sealing, high pressure resistance, corrosion resistance, durable, light weight, easy to install and replace |
