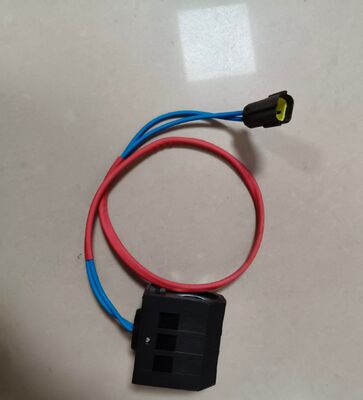

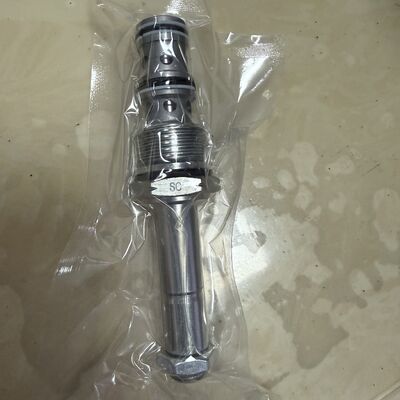

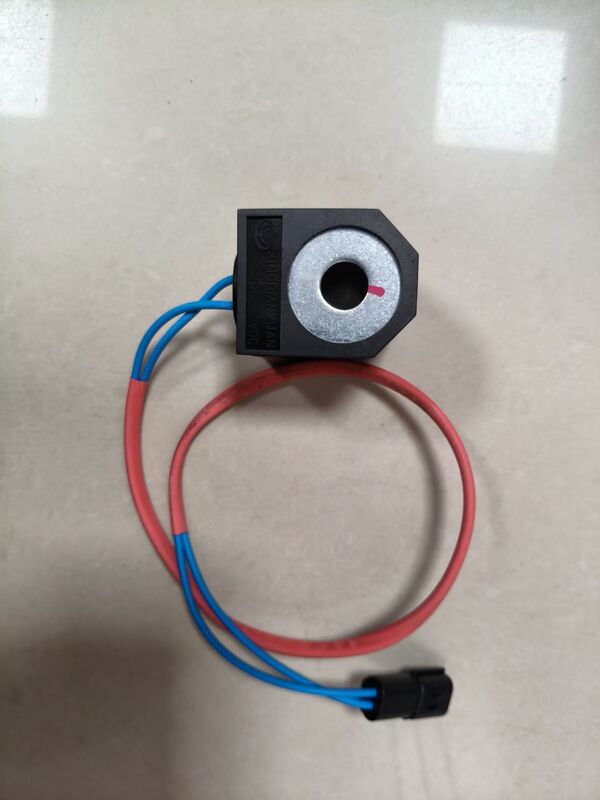

Excavator Solenoid Valve & Coil 12V 24V Pure Copper Coil Pilot Safety Lock Solenoid Valve Assembly Suitable for use with DH excavators
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcd |
|---|---|
| Price: | $12.00 - $20.00/pieces |
| Packaging Details: | BOX |
| Delivery Time: | 5-8DAY |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Piece/Pieces per |
|
Detail Information |
|||
| Product Name Y: | Pressure Switch | Material: | Stainless Steel |
|---|---|---|---|
| Delivery: | DHL | Size: | Standard |
| Excavator Name: | KOBELCO | Communicationprotocol: | CAN Bus |
| Outputsignal: | Analog 4-20mA | Availability: | In Stock |
Product Description
Our company supplies: throttle motors, sensors, solenoid valves, pressure switches, stop switches, computer boards, display screens, controllers, line speeds, control levers, foot valves, hydraulic safety locks, hydraulic component series, etc. The excavator parts produced are suitable for high-quality excavator parts of brands such as Komatsu, CAT, Kobelco, Hitachi, Kato, Daewoo, Hyundai, and Sany. The products are distributed
| Excavator Solenoid Valve and Coil Product Description Sheet | |||
| I. Basic Product Information | |||
| Product Field | Detailed Parameter | Product Field | Detailed Parameter |
| Product Name | Excavator Solenoid Valve Assembly (with Matching Coil) | Product Model | WJ-DCF-24V-T01 |
| Applicable Models | Universal Type (CAT with SANY/KOMATSU/CAT/KOBELCO/DOOSAN and other mainstream excavator brands) | Brand | Wajipei |
| Origin | China | Warranty Period | 12 Months |
| Product Type | Hydraulic Pilot Safety Lock Solenoid Valve/Proportional Solenoid Valve/Swing Solenoid Valve | Executive Standard | GB/T 15628.1-2019 |
| II. Core Specification Parameters | |||
| Parameter Name | Parameter Value | Parameter Name | Parameter Value |
| Rated Voltage | DC 12V/24V (Optional) | Coil Material | 100% Pure Copper Enameled Wire |
| Rated Power | 25W/30W | Valve Body Material | High Precision Die-cast Aluminum Alloy + Wear-resistant Alloy Steel |
| Connection Method | Threaded Connection/Flange Connection (Optional) | Sealing Material | Oil and Temperature Resistant Nitrile Rubber |
| Working Pressure Range | 0.5MPa~35MPa | Working Temperature Range | -40℃~+120℃ |
| Insulation Class | Class H | Protection Level | IP65 |
| Response Time | ≤0.1s | Service Life | ≥10 Million Cycles |
| III. Core Product Features | |||
| Core Advantage Description | |||
| 1. Pure Copper Coil: Wound with 100% high-purity enameled wire, with stable resistance, low heat generation, long service life, and eliminates the problem of easy burnout of aluminum wire coils | |||
| 2. Wear-resistant Valve Body: High-precision die-cast aluminum alloy valve body, matched with alloy steel spool, wear-resistant and corrosion-resistant, suitable for harsh working conditions, not easy to stuck | |||
| 3. Excellent Sealing Performance: Adopts imported oil and temperature resistant nitrile rubber seals, no leakage in high and low temperature environments, and the sealing life is far longer than that of ordinary seals | |||
| 4. Wide Voltage Adaptation: Can work normally within ±20% of voltage fluctuation, suitable for the complex power supply environment of excavators, not easy to burn out | |||
| 5. Strong Universal Adaptability: Covers more than 95% of mainstream excavator brands and models on the market, and can be adapted to pilot, safety lock, swing, travel and other scenarios | |||
| 6. Full Inspection before Delivery: Each product has passed withstand voltage, sealing and power-on tests, 100% qualified before delivery, and prevents defective products from flowing into the market | |||
| IV. List of Compatible Mainstream Models | |||
| Brand | Compatible Models | Brand | Compatible Models |
| SANY | SY55/SY60/SY75/SY135/SY215/SY235/SY365 | KOMATSU | PC60/PC120/PC200/PC220/PC300/PC400 |
| CAT | E307/E312/E320/E325/E330 | KOBELCO | SK60/SK120/SK200/SK210/SK250/SK350 |
| DOOSAN | DH55/DH60/DH150/DH220/DH300/DH370 | HITACHI | EX60/EX120/EX200/EX220/EX300 |
| EC | EC55/EC140/EC210/EC240/EC360 | LIUGONG | LG906/CLG915/CLG920/CLG922/CLG936 |
