Hardened Steel Bushing Arm Excavator Bushing Bucket Kobelco 42CrMo 40Cr
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | sennai |
| Model Number: | 001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $0.60/pieces 100-499 pieces |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Type: | Bushing |
|---|---|---|---|
| Material: | Steel | ||
| Highlight: | 42CrMo bushing arm excavator |
||
Product Description

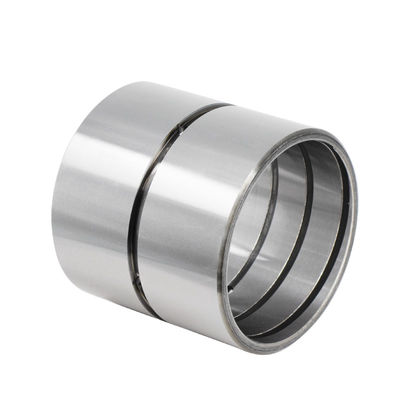

Professional Manufacturing Of Top-Level Excavator Bucket Parts Steel Hardened Bushings
Product Description
Hardened steel bushings are mechanical components used in various applications to provide a bearing surface or support for rotating or sliding shafts, rods, or other components. They are typically cylindrical in shape and made from hardened steel, which undergoes a heat treatment process to increase its strength and durability.
The primary purpose of hardened steel bushings is to reduce friction and wear between two moving parts. They are commonly used in machinery, automotive applications, industrial equipment, and other mechanical systems where there is a need for precise and reliable movement.
The hardness of the steel used in hardened steel bushings is typically achieved through heat treatment processes such as quenching and tempering. This increases the material's resistance to deformation, wear, and fatigue, allowing it to withstand heavy loads and prolonged use.
Hardened steel bushings can be designed to fit into a housing or be pressed into a bore, providing a low-friction surface for a shaft or rod to rotate or slide within. They are often used in conjunction with other components like bearings or shafts to create a complete assembly that allows for smooth and controlled movement.

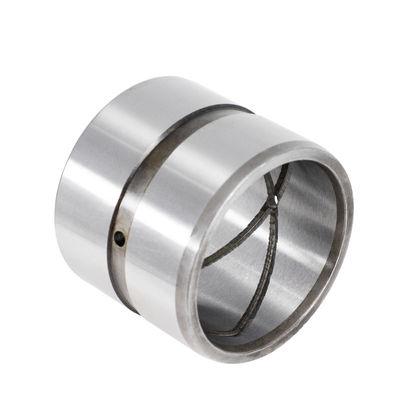

SN-H Steel Bushing
SN-H Steel Bushing
The inner surface of SN-H steel bushing bearing is processed with various types of oil grooves, which improves the surface hardness and wear resistance after heat treatment. It is suitable for heavy-duty joint parts of construction machinery such as excavators, rotary drilling rigs, large loaders, wall grab and so on.
The steel bushing bearing of our company is based on 45#, 40Cr, 20CrMo, GCr15 and other materials. From raw materials to finished products, each process is strictly controlled to ensure the product quality. It produces bushing with high wear resistance, high surface hardness and strong internal toughness.
|
Performance Index
|
|
Data
|
|
|
Hardness
|
HRC
|
58-62
|
|
|
Max Load
|
N/mm2
|
250
|
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
|
Optional Material
42CrMo-Super high strength steel
40Cr-Medium carbon quenched and tempered steel
20CrMo/20CrMnTi-Low carbon alloy steel
Gcr15-Bearing steel
45#-Carbon steel
A variety of product materials can be customized to meet your different product needs

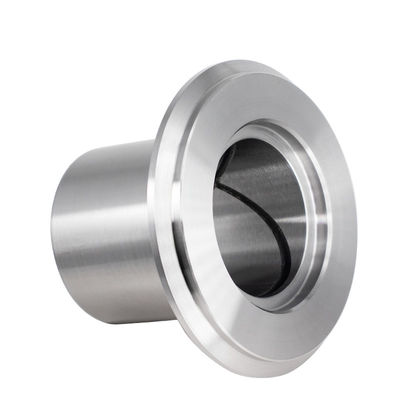

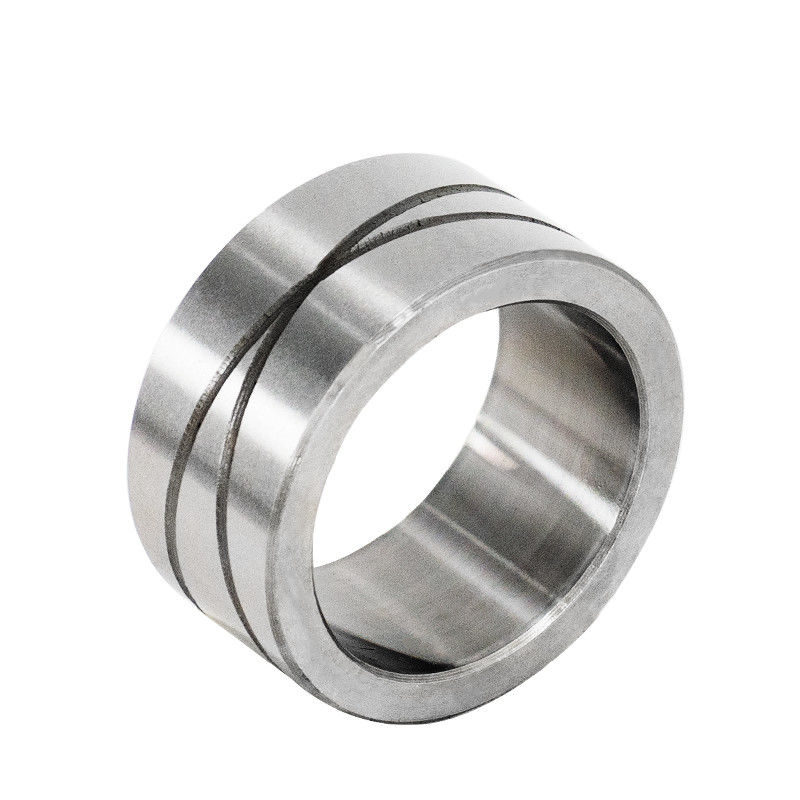

Optional Styles:
Optional Specifications
We can customize the product according to the customer’s drawings, process, tolerance requirements, style and quantity. The following is the processing scope. Please contact pre-sale customer service for specific dimensions.

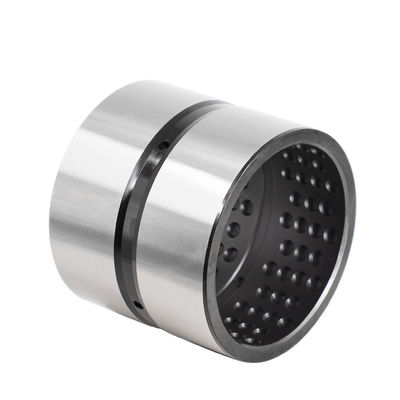

blind hole oil storage steel bushing
blind hole oil storage steel bushing
The inner surface of the blind hole oil storage steel bushing is sprayed with molybdenum disulfide, which has the advantages of
low friction coefficient and good wear resistance, and can work under the condition without oil or with little oil. Products are
widely used in construction machinery, heavy duty high load equipment.
low friction coefficient and good wear resistance, and can work under the condition without oil or with little oil. Products are
widely used in construction machinery, heavy duty high load equipment.
Process: Multipurpose furnace carburizing
Thickness of carburized layer:1.5-2.0mm
Hardness of carburized layer:HRC60--62
Molybdenum disulfide spraying on inner surface
|
Performance Index
|
|
Data
|
|
|
Hardness
|
HV
|
≥650
|
|
|
Max Load
|
N/mm2
|
200
|
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
|
Product Advantages
The inner wall of the bushing is evenly distributed with blind holes with conical cross-section.
The lubricating oil wedge is formed naturally during the grinding process of the inner hole of the bushing
The oil storage capacity of oil pocket is large, which is 3~5 times of that of ordinary oil tank and can be free from maintenance for a long time.
The oil pockets are evenly distributed on the inner wall, and the center distance of the oil pockets in the circumferential direction is fixed. No matter how large the bushing is, it only needs a small rotation angle to fill the inner surface of the bushing with the oil cloth, without lubrication dead area.
The oil pockets evenly distributed in the inner holes do not damage the bearing capacity of the inner wall of the bushing and prolong the service life of the bushing.
Material: 20CrMnTi, 20CrMo and other low carbon alloy steels Surface treatment: Molybdenum disulfide spraying
SN-X Mesh steel bushing
Due to the combination of double surface treatment and special surface morphology, the mesh bushing has excellent wear resistance and seizure resistance. This cross hatch morphology provides a grease reservoir in the load area and can remove abrasive particles. They are suitable for working under harsh working conditions: High pressure, wear, impact and corrosion. Mesh sleeves are alternatives without cross-hatches. They provide excellent performance under high static loads (low dynamic pressures) and small oscillations (wear resistance and seizure resistance...)
|
Performance Index
|
|
Data
|
|
|
Hardness
|
HV
|
≥650
|
|
|
Max Load
|
N/mm2
|
200
|
|
|
Max Linear Velocity
|
m/s
|
0.1
|
|
|
Max PV Value
|
N/mm2.m/s
|
1.5
|
|
|
WorkingTemperature Limit
|
℃
|
-100~ +350
|
|
|
Linear Expension Coefficient
|
10-5/℃
|
1.1
|
|

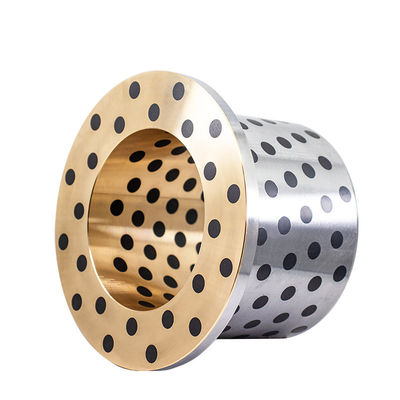

SN-B Bimetallic composite self-lubricating bushing
The bimetallic self-lubricating graphite copper bushing is based on low carbon steel, and the inner surface is Tin Phosphorus Bronze, the thickness can be customized 0.5-5mm. The ZCuSn10P1 tin-phosphorus bronze has high hardness and wear resistance. It can be used to manufacture parts that work under heavy load, high speed and high temperature, and the copper bushing is subject to strong friction. The surface of the bimetallic self-lubricating graphite bushing is inlaid with a special formula of solid lubricant at a certain angle and density, which is precisely processed, so that the copper bushing has the advantages of high wear resistance, high hardness and high toughness.
|
Material and bushing
characteristics
|
|
value
|
Company
|
value
|
|
|
Maximum load
|
Mpa
|
100
|
psi
|
145,00
|
|
|
working temperature
|
℃
|
-40 to 300
|
°F
|
-40 to 572
|
|
|
Max Linear Velocity
|
m/s
|
0.5
|
fpm
|
100
|
|
|
Maximum PV Value
|
m/sxMPa
|
1.65
|
pis x fpm
|
48,000
|
|
|
Minimum hardness of sliding layer
|
HB
|
210
|
HB
|
210
|
|
|
Minimum hardness of dual parts
|
HRC
|
40
|
HRC
|
40
|
|
The bimetallic self-lubricating graphite copper bushing is a novel lubricating bearing with the characteristics of metal bearing and self-lubricating bearing. It is loaded by metal matrix, and the solid lubricating material with special formula plays a lubricating role. It has the characteristics of high bearing capacity, impact resistance, high temperature resistance and strong self-lubricating capability. It is especially suitable for occasions that are difficult to lubricate and form oil membrane, such as heavy load, low speed, reciprocating or swinging, and it is also not afraid of water erosion and erosion of other acids.
Seamless steel pipe products and forging services
We provide various types of finish rolled seamless steel pipe products
1.Various specifications of steel pipe 2.Various steel pipe materials 3.Large inventory 4.Supply chain stability
Scope of sale
Our products are exported to more than 120 countries and regions, providing supporting services for many well-known construction machinery and equipment manufacturers at home and abroad, and providing OEM/ODM services for nearly 100 trading companies every year.
Production Process
About US
Shandong Sennai Intelligent Technology Co., Ltd. is located in Jinan City, Shandong Province. Its factory is located in Liaocheng, Shandong Province. It is a professional manufacturer of self-lubricating bearing manufacturing-industry and trade enterprise integrating scientific research, production, sales and technical service. It has 15 years of industry experience and global sales channels. It provides supporting services for many well-known construction machinery and equipment manufacturers at home and abroad, and provides OEM/ODM services for nearly 100 trading companies every year.
The factory has vertical and horizontal machining center equipment and professional and technical personnel team, high efficiency, strong comprehensive ability, can complete the shape of complex, high precision requirements of the single processing. And has a perfect staff skills training system, talent selection training plan.
Thickness of carburizing layer:1.0-1.2mm
Surface hardness:hrc58 - 62
We have a rich cluster of heat treatment equipment, complete solutions to various steel heat treatment problems and rigorous quality control systems. We can heat treat various precision components, and can accurately control the hardening depth and hardness of carburizing. The technicians conduct in-depth experimental research on each work-piece to ensure that the hardness, strength, plasticity and toughness of the different materials are optimized after tempering. Make the metallographic structure tend to be stable and ensure that no deformation occurs in later use process.
Professional QC quality inspection team shall be responsible for the overall work of the department and organize implementation of relevant quality management regulations. Report batch quality problems timely, timely provide the information of unqualified products, and dispose unqualified products to ensure that the product quality meets the requirements.
Product Testing R&D Center
