Product Description

Wholesale Excavator And Loader Specific Wear-resistant Sliding Steel Bushings

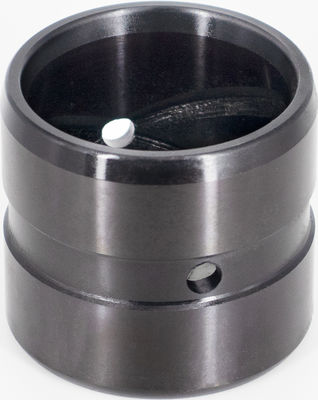

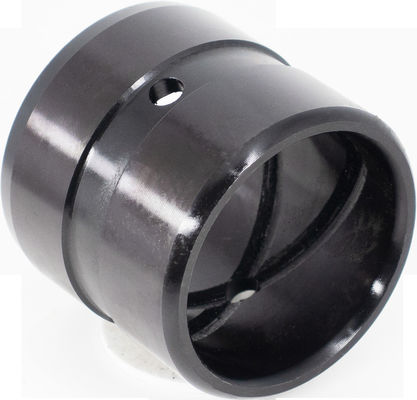

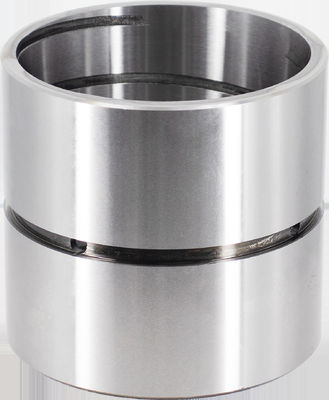

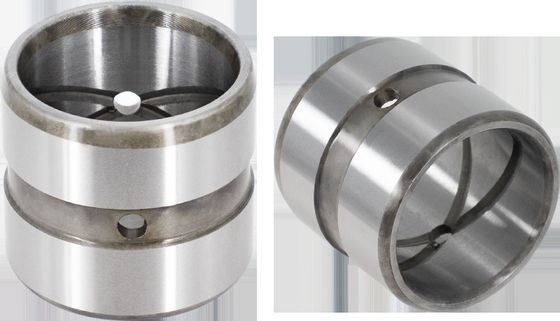

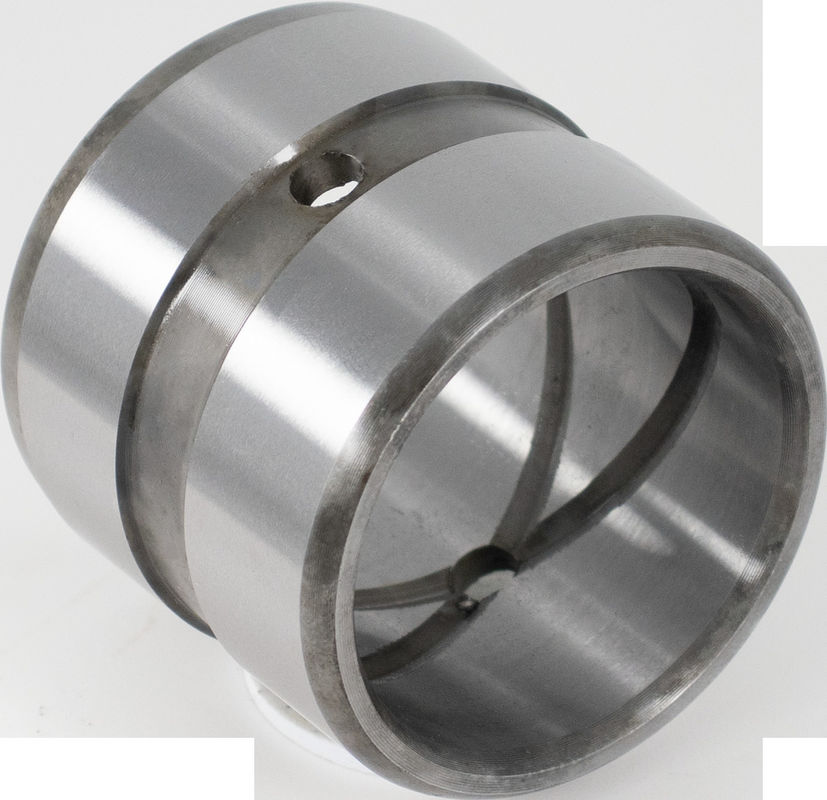

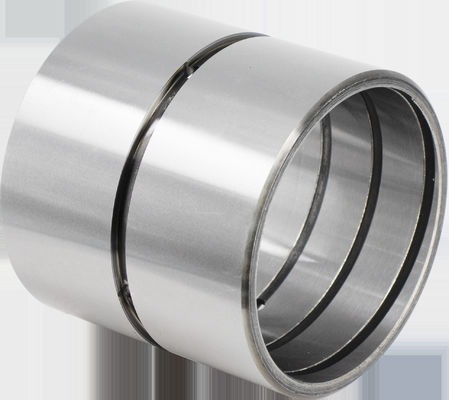

hardened steel bushings are backed with steel, and it`s inner surface has many spiral oil grooves, oil rings, oil holes, round and elliptical oil sockets. After quenched and tempered, the surface roughness and wear-resistant has been improved.

This type of product is used in engineering machinery field and applications that demand high wear resistance without cracking under heavy load.

Features:

Low friction: The hardened surface of these bushings helps reduce friction between the bushing and the mating component, such as a shaft or rod. This results in smoother movement and improved efficiency.

Precision machining: Hardened steel bushings are typically precision-machined to ensure accurate dimensions and tolerances. This allows for a proper fit and alignment within the application, minimizing any unwanted play or movement.

Corrosion resistance: While hardened steel bushings are generally resistant to wear, they may still be susceptible to corrosion in certain environments. To mitigate this, they can be coated with protective finishes or manufactured from stainless steel for enhanced corrosion resistance.

Versatility: Hardened steel bushings can be used in a wide range of applications, including automotive, industrial machinery, construction equipment, and more. They are suitable for both rotating and sliding motion, providing support and reducing friction in various mechanical systems.

Temperature resistance: Hardened steel bushings can withstand high operating temperatures without significant degradation. This makes them suitable for applications where heat is generated or where they are exposed to elevated temperatures.

Performance Index			Data
Hardness	HRC	58-62
Max Load	N/mm2	250
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

blind hole oil storage steel bushing

Performance Index			Data
Hardness	HV	≥650
Max Load	N/mm2	200
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

SN-X Mesh steel bushing

Performance Index			Data
Hardness	HV	≥650
Max Load	N/mm2	200
Max Linear Velocity	m/s	0.1
Max PV Value	N/mm2.m/s	1.5
WorkingTemperature Limit	℃	-100~ +350
Linear Expension Coefficient	10-5/℃	1.1

SN-B Bimetallic composite self-lubricating bushing

Material and bushing characteristics			value	Company	value
Maximum load	Mpa	100	psi	145,00
working temperature	℃	-40 to 300	°F	-40 to 572
Max Linear Velocity	m/s	0.5	fpm	100
Maximum PV Value	m/sxMPa	1.65	pis x fpm	48,000
Minimum hardness of sliding layer	HB	210	HB	210
Minimum hardness of dual parts	HRC	40	HRC	40

Related Products



Company Profile

Packaging &Logistics

FAQ

Why choose us?

a. With experiences over 10 years.

b. Strict inspection and high quality with reasonable price.

c. OEM and ODM service provided.

d. Delivery time is short and on-time.

We can give you the direct factory price without broker. Our products are cost-effective with 100% QC quality assurance before shipment. We have our own design team and advanced high-precision machines and testing equipment.



What kinds of products you supply?

Main products are bushing,pin,,shim washers,etc, as per customers' drawings or samples.



Can I have a sample order or trail order?

Yes, it is available to check quality first. Mixed samples are also acceptable.



What about the lead time or delivery time?

In stock: 1-3 days. Usually in 24 hours.

Out of stock: 3-7 days for samples, 3-4 weeks for mass production. It's according to your quantity, and we will let you know when we quote.



What is your payment method?

We accept T/T, Western Union, L/C, credit card or via ALIBABA Assurance order.



Do you support special customized product (OEM or ODM)?

Of course, our company has experienced and professional engineers and possess a number of testing equipment. It can meet all customized requirements of customers while ensuring product quality.



What's your MOQ?

We will indicate the MOQ for each item in the quotation sheet.Normally, our minimum order is USD5000, one 20'
full container load and LCL container (less than a container load) can be acceptable.We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.



What's about the quality of you products?

We are specialized in high quality products and make products according to drawings and samples strictly to meet your 100% satisfaction.



Are you a trader or a manufacturer?

We are a factory-based and trade integration company, always professional and reliable. Our factory is located in Shandong Liaocheng, and our sales department is in the City centre of Jinan. The distance is 150Km, 1.5
hours. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.



How can I be sure the part will fit my machine?

Pls try to give us as much of the following info as possible:

- Correct model number

- Part number

- Machine serial number

- Any numbers on the part itself

- Any measurements you are able to get.

Or just give us drawing.



What about your Quality Control?

We produce as per the confirmed technology or drawings for each order for our customers. We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully,monitor every production process until packing is complete, to ensure products safety into the container.



May I have my order working schedule?

Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in of damaging and missing parts before shipment.The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.



Do you like to serve the customers only with small orders?

We are always glad to grow up together with all our customers whatever big or small. We hope our customers become stronger and stronger to be with us.



What's package of your products?

We can provide standard export package with wooden box or carton, of course, customized package according your requirement is available.



What's the terms of the trasaction?

Usually we adopt EXW or FOB, and FCA, FAS, CIF, CIP, DDP and other method is available as your requirements.



Do you provide free samples?

Yes, usually we provide free samples for testing under the condition of gurantee deposit and freight paid by customer, but can be returned after the order is placed.



How long can I get some samples for checking and what about the price?

Normally samples will be done within 1-2 days (automatic machining parts) or 3-5 day (cnc machining parts). The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your order quantity is good.



When inspecting steel bushing, what should we need to consider?

1. Whether the surface treatment is smooth

2. Accuracy

3. Hardness



Your product certifications?

ISO 9001:2008, ISO14001, RoHS



What is the warranty for our products?

One year from the date of leaving the factory, our company is solely responsible for after-sales service for product quality problems that are not caused by improper use, improper storage or human reasons.
