High Strength Track Bolts And Nuts Grouser Track Bolts And Bushings Undercarriage Parts

Product Details:

Place of Origin: China
Brand Name: Real TIG ，NB TIG
Certification: ISO
Model Number: all

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: carton box and wooden 1050*810*740mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 1000000sets per month
Get Best Price Contact Now

Detail Information
Material: 40Gr/45C Grade: 8.8/10.9/12.9
Surface: Black Or Zinc Plated
Highlight:

High Strength Track Bolts And Nuts

Product Description

track bolts and nuts for undercarriage parts like sprocket , segment.

Techquenic



Grade Strength  Hardness
8.8grade 800Mpa HRC24~30
10.9Grade 1000Mpa HRC32~40
12.9Grade 1200Mpa HRC36~42


product list
2A3223 1/2" ×20UNF×47
7H3596 9/16" ×18UNF×51
7H3597 5/8" ×18UNF×54
5H8756 5/8" ×18UNF×57
1S1859 3/4" ×16UNF×55
7H3598 3/4" ×16UNF×61
6V1792 3/4" ×16UNF×61D
7H3599 7/8" ×14UNF×67
6V1723 7/8" ×14UNF×87
2M5657 1" ×14UNS×75
3T6308 1" ×14UNS×80
6T2638 1" ×14UNS×90
6V1726 1" ×14UNS×101
7T1000 1-1/8×18unf ×96
6S3419 1/2" ×20UNF×(19×15)
7K2017 9/16" ×18UNF×(22×18)
1M1408 5/8" ×18UNF×(25×18)
1S1860 3/4" ×16UNF×(28.6×19)
2S2140 7/8" ×14UNF×(33×22.5)
1S6421 1" ×14UNS×(38×25)
2M5656 1" ×14UNS×(35×25)
7G6442 7/8" ×14UNF×(33×34.5)
7G0343 1" ×14UNS×(38×40)
5P8221 1 1/8" ×12UNF×(42×43)


101-32-11210 M12×1.5×40
79039443 M18×1.5×55F
79004259 M18×1.5×60
20Y-32-11210 M20×1.5×56F
9W3619 M20×1.5×55D
71401179 M20×1.5×62F
6Y0846 M20×1.5×63
71401192 M20×1.5×65F
154-32-31210 M20×1.5×70
207-32-51210 M22×1.5×56F
71428357 M22×1.5×62F
6Y6024 M22×1.5×67D
76007851 M22×1.5×70F
208-32-51210 M24×1.5×65F
21M-32-11260 M24×1.5×72
175-32-11210 M24×1.5×78
195-32-61210 M27×1.5×82
6Y7432 M27×1.5×90
195-32-11210 M30×1.5×96
M12*1.5NUT M12×1.5×(19×15)
4982325 M18×1.5×(27×19)
9W3361 M20×1.5×(28.6×22)
170-32-11222 M22×1.5×(32×22)
178-32-11220 M24×1.5×(35×24)
195-32-11221 M27×1.5×(41×27)
195-32-61221 M30×2.0×(46×38)
01803-02026 M20×1.5×(30×24)
01803-02430 M24×2.0×(36×24)

 Package details

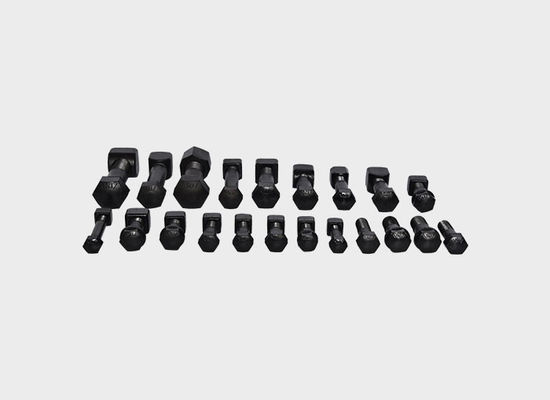

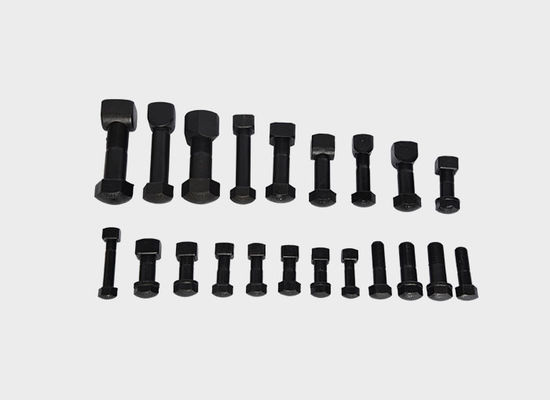

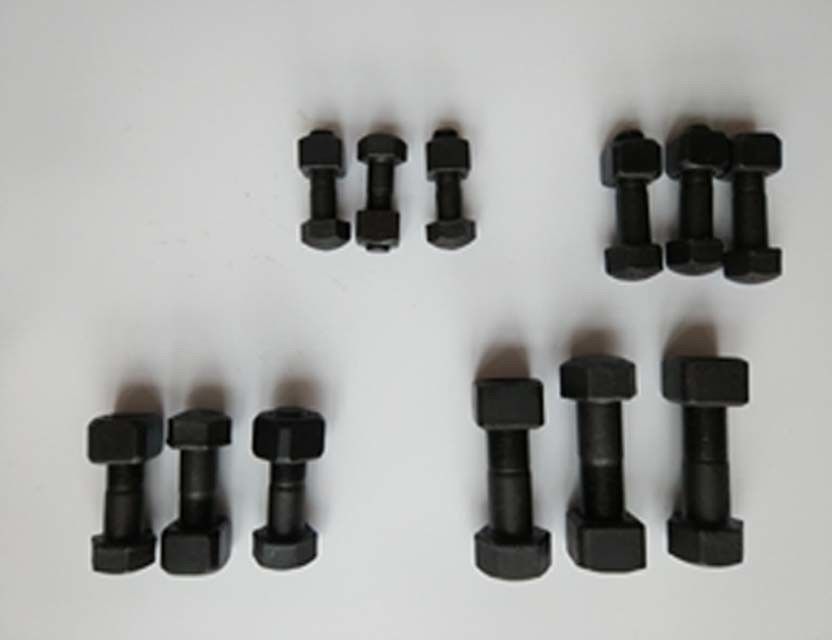

High Strength Track Bolts And Nuts Grouser Track Bolts And Bushings Undercarriage Parts 0High Strength Track Bolts And Nuts Grouser Track Bolts And Bushings Undercarriage Parts 1




High Strength Track Bolts And Nuts Grouser Track Bolts And Bushings Undercarriage Parts 2
High Strength Track Bolts And Nuts Grouser Track Bolts And Bushings Undercarriage Parts 3

Tag:

caterpillar track bolts

track shoe bolts

dozer track pad bolts
